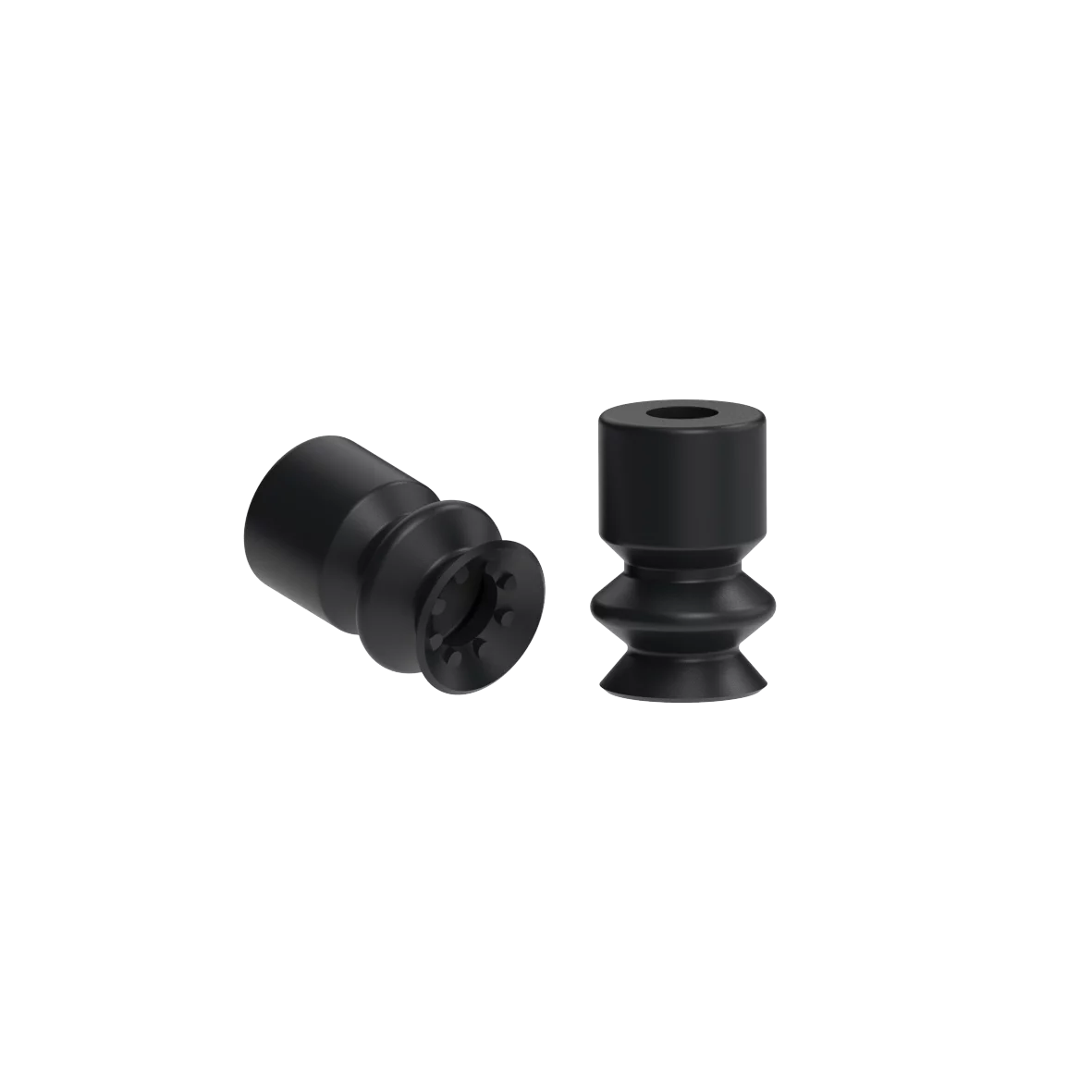

Bellows vacuum cup diam. 6 mm (1.5 bellows) NBR black
Hersteller: FIPA GmbH (Germany)
Balg Vakuumbecher sbf eine flexible Lippe 6mm 1___5balg
<p>Bellows vacuum cup with soft, very flexible single sealing lip for handling highly sensitive products with high leveling adjustment.<br />
Connection with plugged, or fixed screwed nipple or attachment frame (Ø 80 mm). Compatible "snap-in" spring leveller available.</p>
<ul>
<li>Large holding force</li>
<li>Fine, flexible sealing lip fits in perfectly with irregularities of the product</li>
<li>Cleats for the sealing lip prevent retraction of flexible products (e.g. films)</li>
<li>Cost-effective replacement of worn seals</li>
<li>High process reliability due to fixed, non-rotating seat of the screw nipple</li>
</ul>
Preis: Preis auf Anfrage
Technische Daten
- Drawing
- A
- Model
- SBF-A -6
- Stroke
- 2.3 mm
- Anzahl der Falten
- 1.5
- Material/Farbe
- NBR (sw)
- Ø D
- 6.0 mm
- Ø d1
- 6.0 mm
- Ø d2
- 2.6 mm
- Ø d4
- 3.0 mm
- H
- 10.0 mm
- Diameter
- 6.0 mm
- Bechermaterial
- NBR
- h1
- 2.5 mm
- G2 (männlich)
- --
- h3
- 0.6 mm
